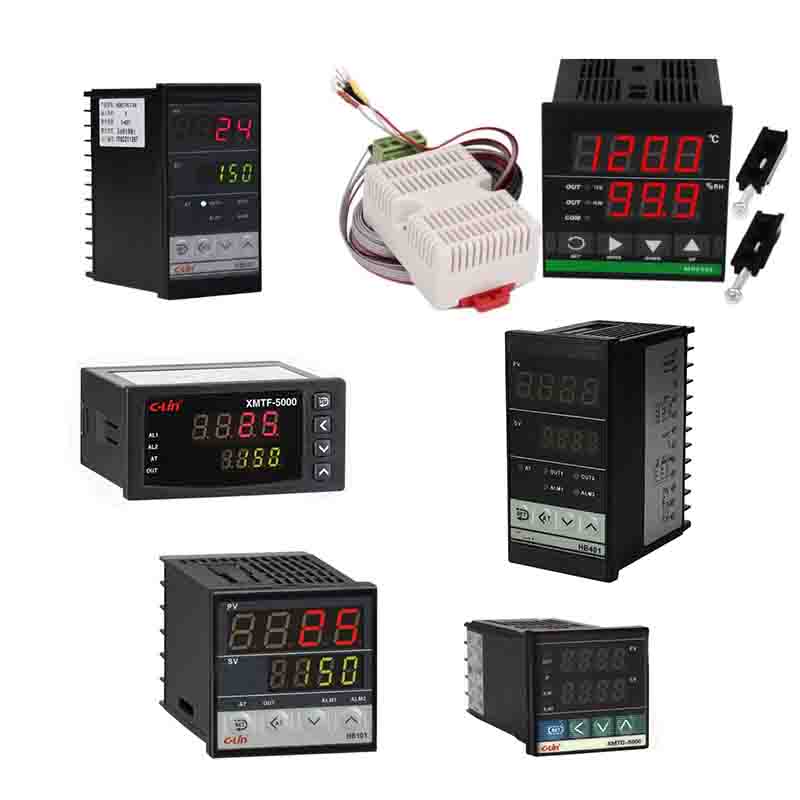

Temperature Controller/ Thermostat
Application: Drying Case, Oven Backofen, Heating Device.
Features:
- Control Type: Digital
- Display Type: LED
- Material: Plastic Housing
- Mounting: Panel or DIN Rail
- Setting Method: Dial-up Setting
Description:
- Model: Hh48-N E5C4
- Input: K type, J type
- Setting precision: +_3% FS?
- Input sampling cycle: 0.2 second
- Relay Point Control Output: 250V AC 3 A(block load) 250V AC
1A (Inductive load, cos=0.4).
- No point Voltage Control Output: ( SSR drives) 12 VDC,
Max: 40 mA (short circuit protection).
- Current & voltage output: 4-20 mA, load resistance Max=500
Ohm, 0-10VDC, load current ≤ 10mA.
- Assistant power supply (feeding): 10V, 12V, 24V can be
Optional, load current≤ 20mA.
- Alarm mode: On/off mode, lag 1 (1) or 0.1
- Alarm Output: Relay Point: 250VAC 3A (resistance load)
250V AC 1A (Inductive load, cos=0.4).
- Power Supply & Voltage: 85-240VAC, 180-275V AC, 50/
60Hz, 24VAC/DC, 50/60Hz.
- Range of voltage: 85-275V AC, 165-380V AC, 22-26V AC/DC.
- Ambient Temperature: -5~50.
- Ambient Humidity: 80%RH.
- Weight: 230g.
- Power Loss: 4W.
- Insulation Resistance: ≥ 10meg-ohm (testing condition
500V).
- Hole Size: 45+0.5 x 45+0.5
- Dimension Size: 48 x 48 x 90 mm
Made in China
